This is my BASIC STAMP II project attempt.
Please E-mail if you have any questions.
Click here for Video Download of R2Taupo!
The R2TAUPO uses two modified drive
servos for 360 degree operation.
(This link will show you how to
modify a standard model airplane servo
to make a robot drive system)
http://www.seattlerobotics.org/guide/servohack.html

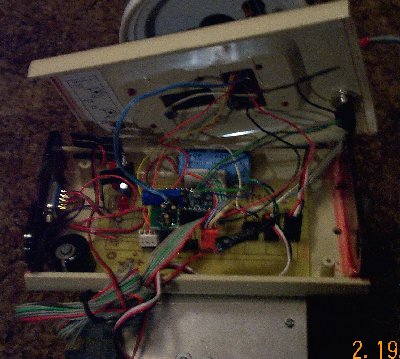

The brains are a BASIC STAMP II
chip with a motherboard
that i designed.Source code found
here.
R2TAUPO.TXT
It contains a 7805 power supply,
and enough
header pins for 8 servos and 8
general control pins, lights,
speakers, sensors, etc.

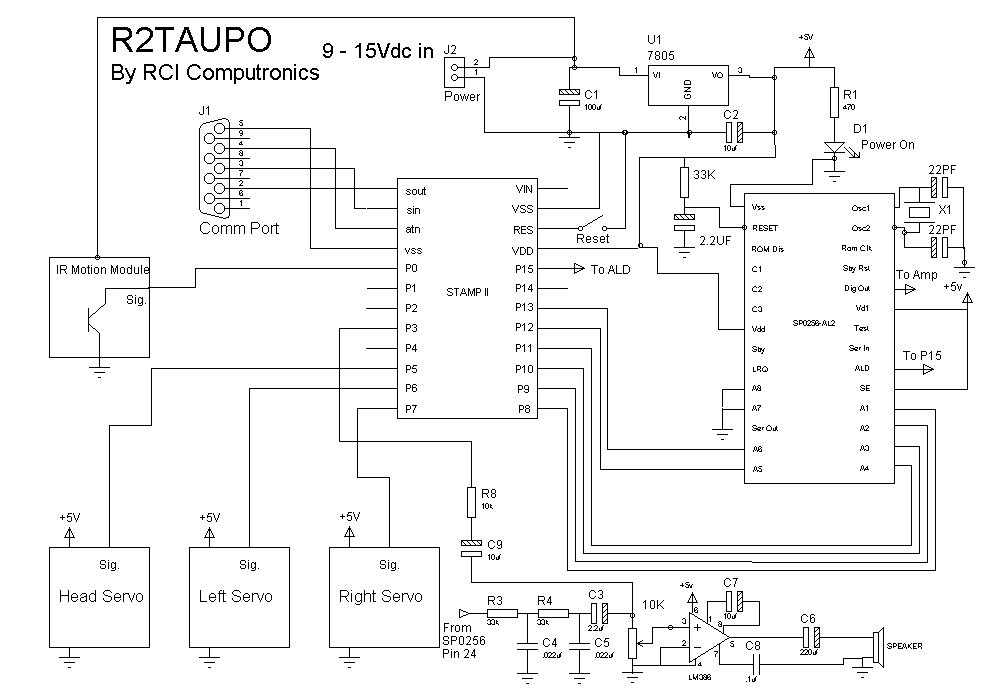

Click here for schematic. R2TAUPO.gif

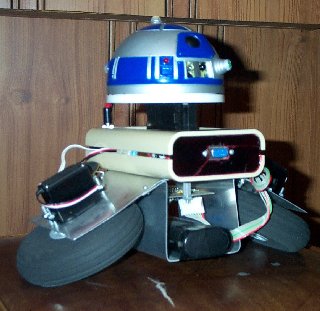

The slanted drive wheel design
allows the robot to roll and steer with
only two wheels. (model airplane
wheels)

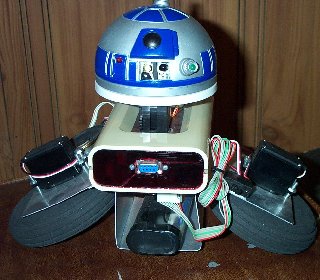

The head rotates 180 degrees (standard
servo), and contains leds and Infrared motion
detection. (Got the
head from a Kentucky Fried Chicken promo glass)
This allows R2TAUPO to avoid objects,
and make decisions
to locate a clear path to follow.
R2TAUPO has a speaker and amp
for sound output.
The power source is a 7.2v rechargable
hobby battery.
Just added speech board and software routine. (code
updated)
Schematic and foil pattern will be here soon............
General hints on R2Taupo construction.
instruct.zip
LEGO
Micro Scout Remote IR Controller!
The link above contains the program
and schematic to build a remote control
for the LEGO Micro Scout controller
provided with the LEGO DROID
DEVELOPMENT Kit.
It utilizes the BASIC STAMP II and allows
12 Micro Scout commands which are
provided in the program.
